Toolbar entry

There are three types of a toolbar entry:

d) Action button (entry)

e) Separation line (separator)

f) Reference to another toolbar to display at this point (Sub-Toolbar)

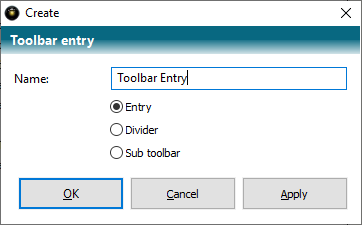

When creating the toolbar entry, you decide on the type.

The name of the toolbar entry must be unique among the toolbar entries of the toolbar.

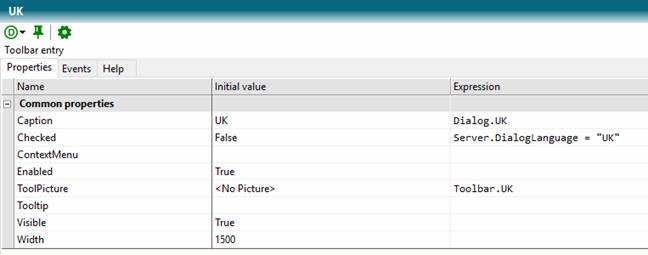

You can set a dynamic expression for each property in the Expression column.

Properties Entry

Property	Description
Caption	Text of the toolbar entry
Checked	The toolbar entry is drawn marked (switched on)
ContextMenu	Name of a context menu that is displayed when the toolbar entry is pressed. It must be the name of a menu of the same class.
Enabled	The toolbar entry can be pressed, if True
ToolPicture	Image of the toolbar entry
Tooltip	Text that appears when the mouse pointer lingers over the toolbar entry
Visible	Visibility of the toolbar entry
Width	Width of toolbar entry in twips or zero (0) for automatic width

Properties Separator

Property	Description
Visible	The separator is visible

Properties Sub-Toolbar

Property	Description
Object	Reference to a TCE object that manages the toolbar to display at this point.
Toolbar	Name of the toolbar (string) of the toolbar in Object
